Features of spaghetti noodle packing machine

1. Multi-servo full-automatic intelligent combination spaghetti packaging machine.




   1	Package Length	200-240mm
   2	Package Scope/Speed	100-500g/bag；300-1000g/bag	one by two：25-35bag/min
   			one by three：30-50bag/min
   			one by four：50-65bag/min
   		1500-2500g/bag	one by three：20-25bag/min
   3	Motor power	(Main motor 3.8kw+N*0.4KW/weight and elevate） N=Weighing lifting quantityE.g. one by two：3.8kw+0.4kw*2=4.6kw
   4	air comsumption	0.06m³/min
   5	Power Supply	AC 220V 50HZ

2. .Automatic weighing

   Electromagnetic vibration measuring mode, achieve high measurement accuracy and

   fast weighing speed, as well as combine automatic metering with fast weighing.






3. LCD display, can be set, display operating status, parameters and fault.

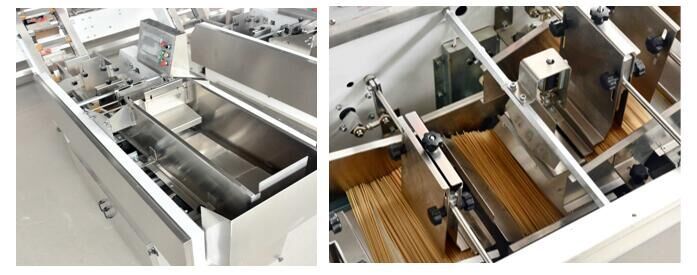

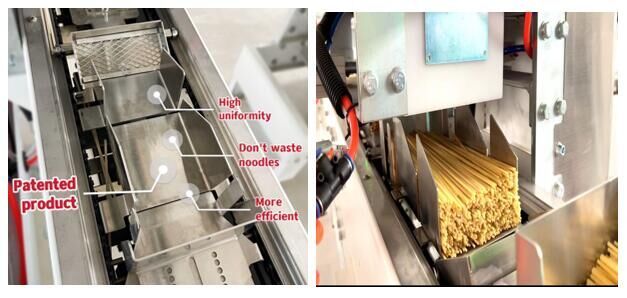

4. The conveyor adopts material box structure, thus resolving the problem of having

   to replace scraper structures frequently and appearance defects. In delivery box,

   the device pushes back and forth to ensure the noodles are tidy as they enter.

5.Advanced empty bag detection device.In the event that no material is found

in the delivery box, the system will stop, saving the greatest amount

of packaging film waste.
