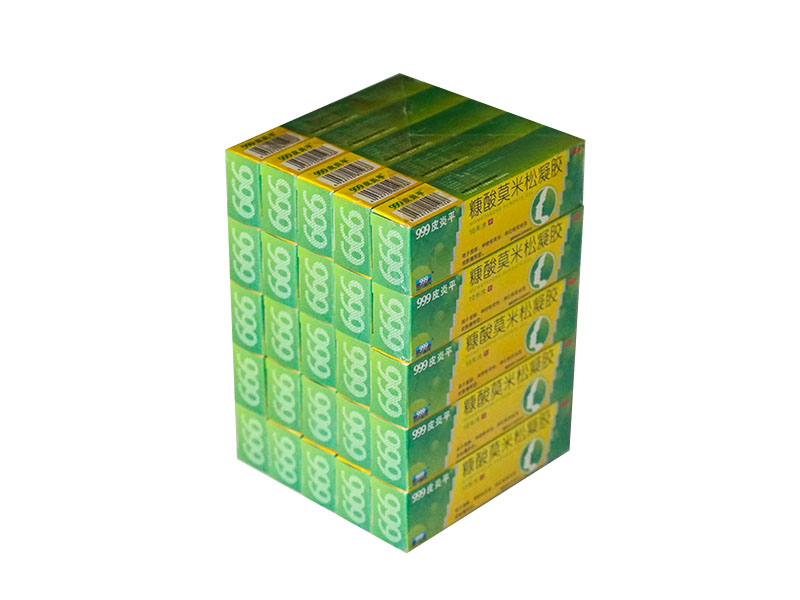

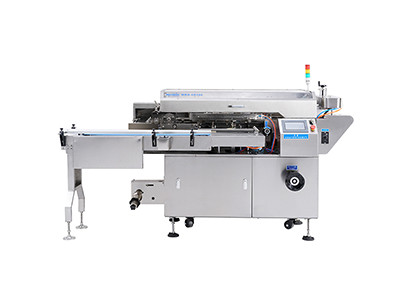

Multi-Function stack overwrapping packaging machine WBG QD480
Automatic overwrapping machine
Full automatic:feeding,standing,sorting, packaging,hot sealing,counting Fully sealed packaging,waterproof, moistureproff,antipollution,anti-channel
E-mail
Contact

Detailed introduction

Applicable Packaging Materials

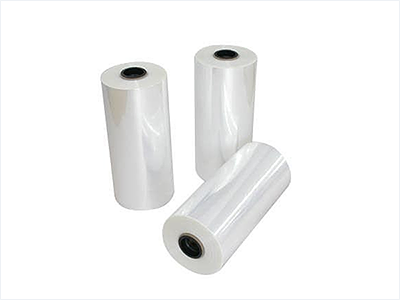

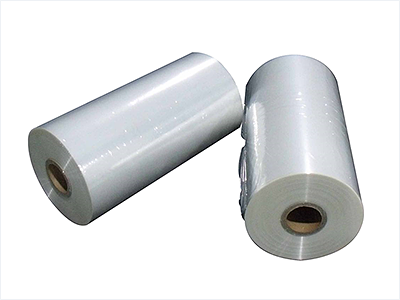

BOPPPVC


Main Specification


ModelFilm WidthOutput speedA-pack lenghtB-pack widthC-pack height
WBG-QD48052030-50 bags/min80-300mm70-130mm30-120mm
WBG-QD48058030-50 bags/min80-350mm70-160mm30-120mm

Maximum for this range,output speed depends on pack size.Other range,speeds and pack size capabilities are available


Machine options





Tear tape
Separate Servo device

Dot end Seal

Spot ironing is suitable for a single variety, requiring a fixed position


 Print registation
Add a printer or a coder

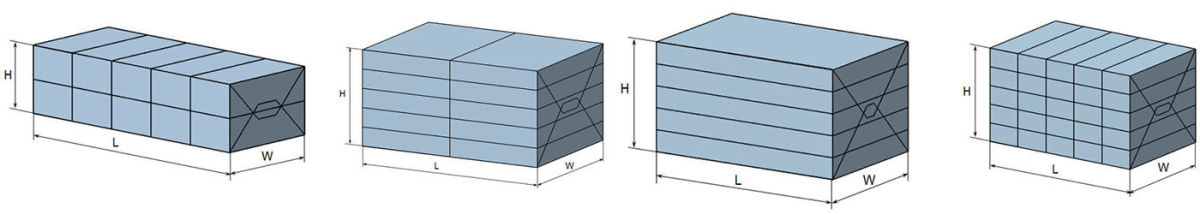

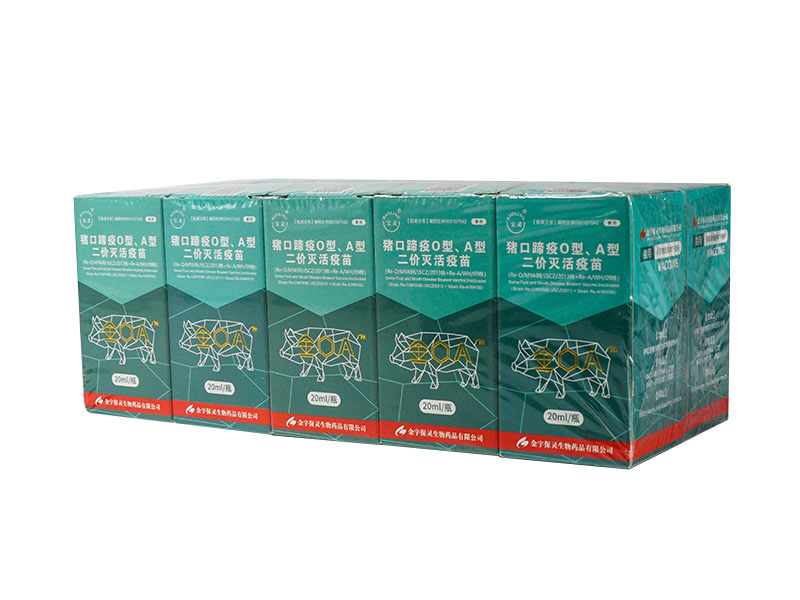

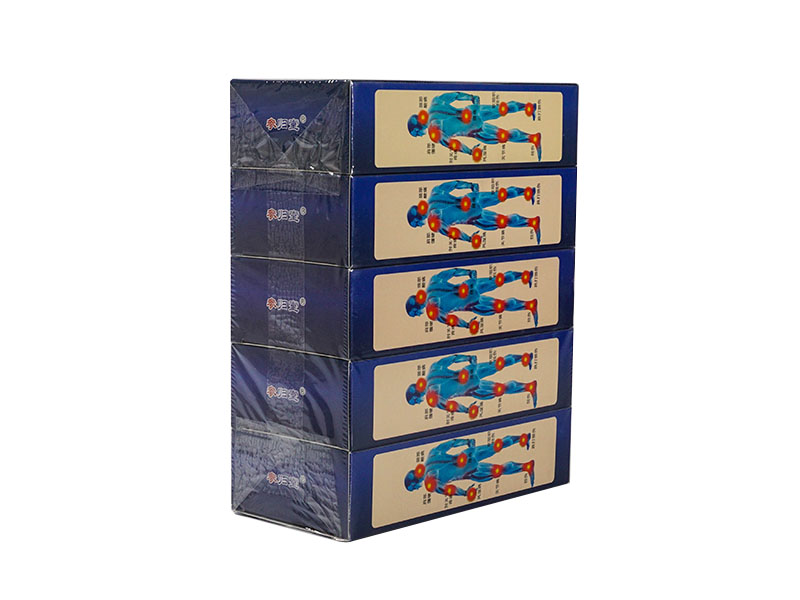

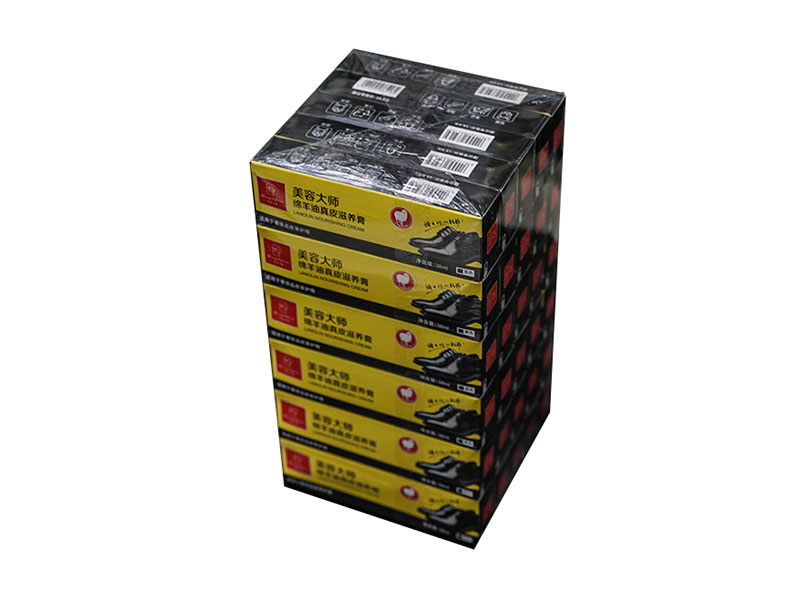

Package Stype

Package Stype.jpg

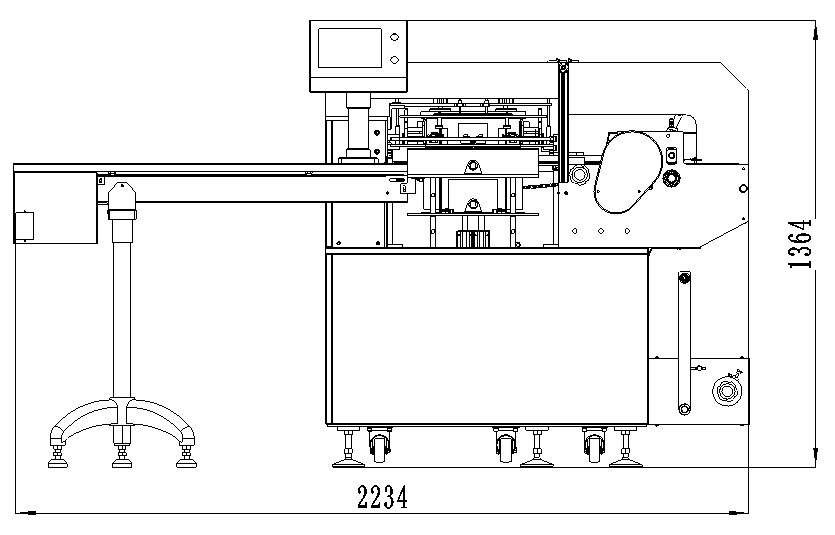

Layout drawing

Layout drawing.png

Different model overwrapping comparation for your choice



ModelCD380CD480SD380QD480
Speed20-4030-5020-4030-50
DifferenceWith cam deviceNo cam deviceWith cam deviceNo cam device
SuitableStack Oversize strip boxStack Strip boxStack square boxHigh speed stack square box
Servo motor2424
