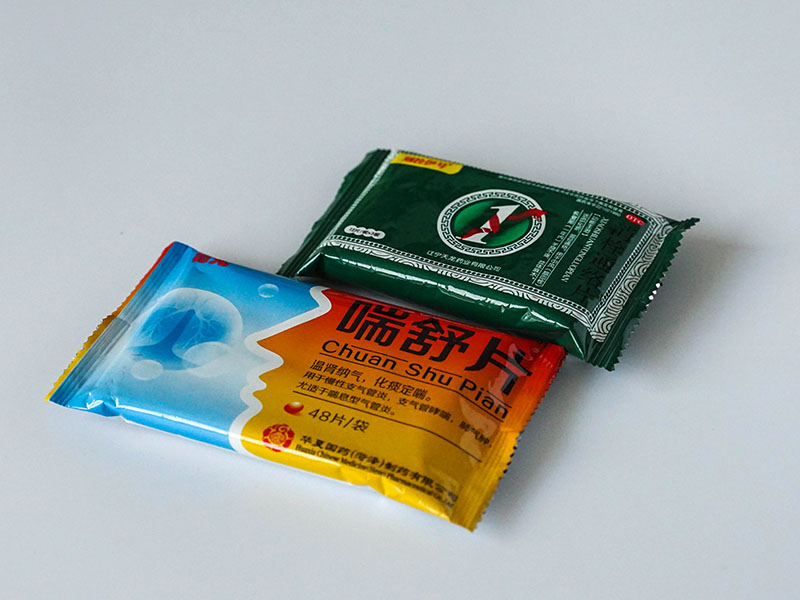

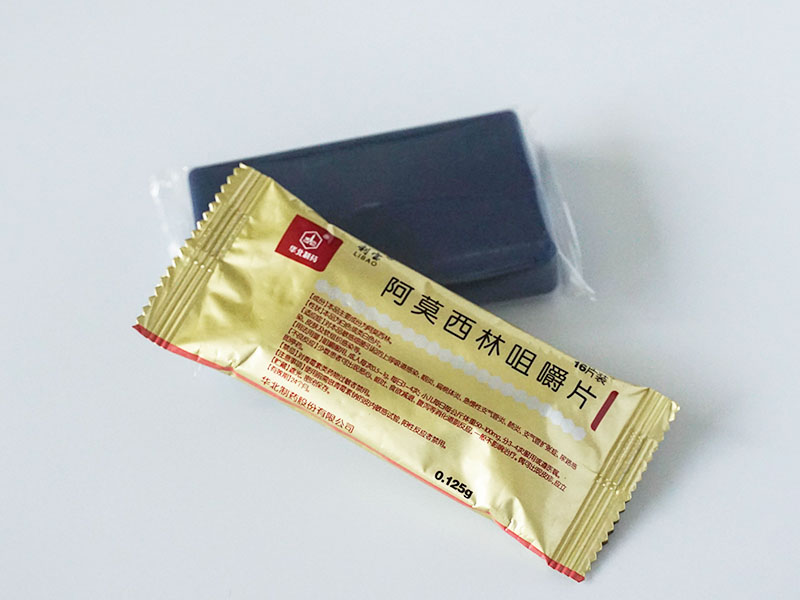

Capsules blister board pillow bag packing machine WBZY
It is useful for pharmaceutical company to make primary and secondary packaging of solid dosage forms ( tablets & capsules).
poaching machine for packaging of blisters with abilities to add automatically desiccant together with blisters inside of pouch.

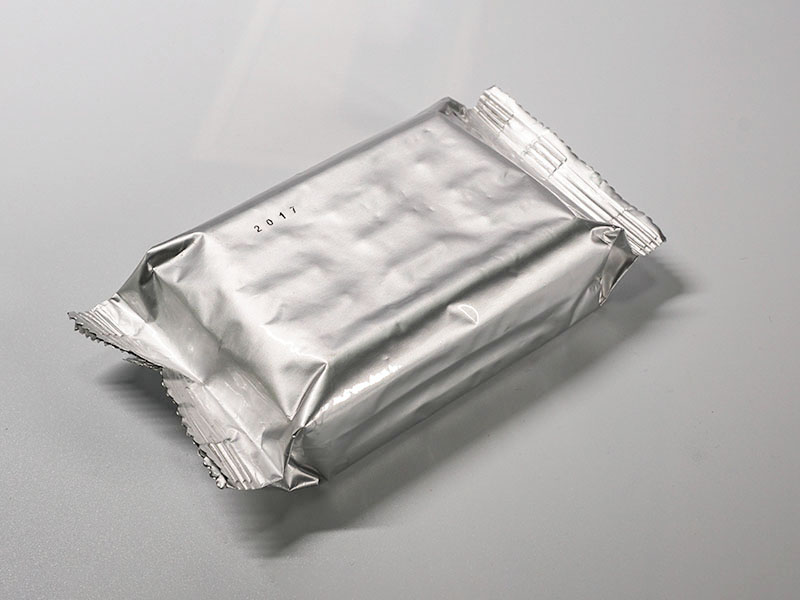

Pouch can be form triplex foil ( PET/ALU/PE)

Detailed introduction

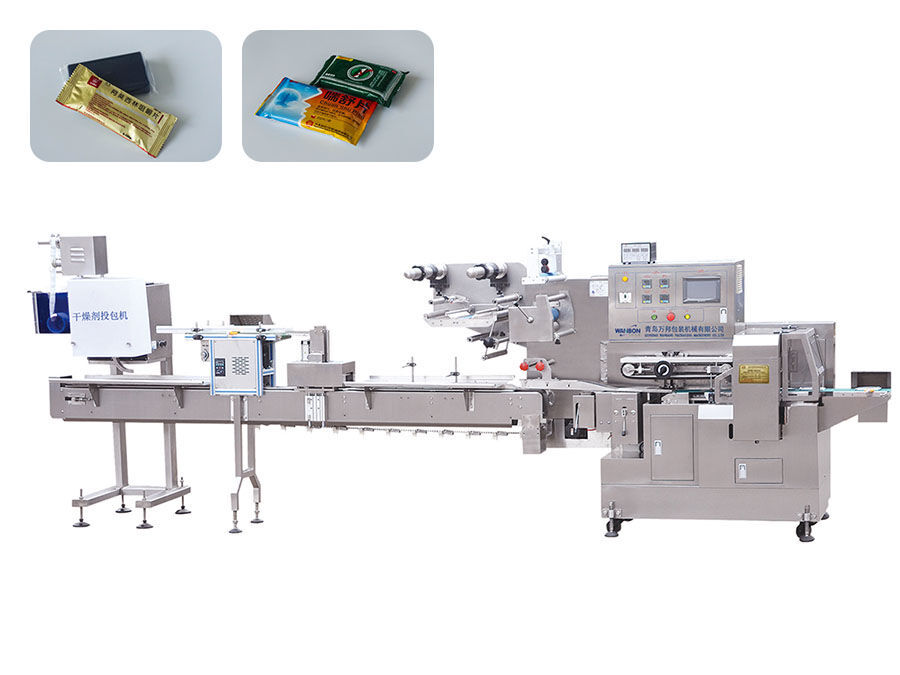

Advantages of WBZY model pillow bag packing machine for capsule blister board

Automatic high-speed pillow packing machine is mainly suitable for bag packing

with aluminum-plastic packing plate in medicine, food and other industries, which plays the role of moisture-proof, dust-proof and light-proof. At the same time, it improves the product grade and added value. Compared with manual bag packing, using this machine can save more

than 20% of the cost, and it can be produced in linkage with aluminum-plastic packing machine, transparent film packing machine and other machinery.

Main Specification

ModelFilm WidthOutput speedA-pack lenghtB-pack widthC-pack height

Higher speed mode is WBZY-G,the speed is from 200-300bags/min

We also supply the whole production line solution for customer.


Product Features

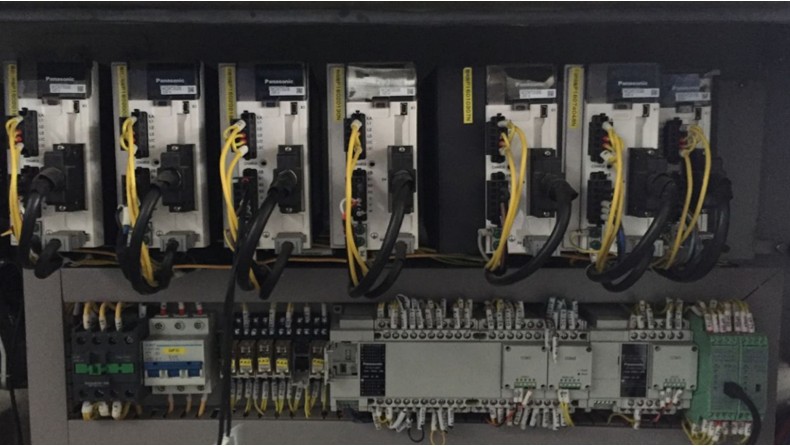

The high-speed pillow packing machine power unit is composed of seven sets of servo motors, which are respectively: blanking servo motor, conveying chain servo motor, film feeding servo motor, longitudinal sealing servo motor and transverse sealing servo motor (three sets of servo motors).

  1. Our WBZW reciprocating packaging machine is designed and manufactured by our company based on the introduction of Japanese technology and according to the characteristics of domestic packaging materials, which is more reasonable in design, more stable in operation and more convenient in adjustment. The main body (frame) of the packaging machine is made of 17-23mm thick steel plate. The dead weight of the equipment is 1500KG. The equipment runs stably and does not float.

  2. The main technical backbone has more than 20 years of production experience to ensure that the production equipment is more professional and the operation is more user-friendly. The installation team of skilled technicians ensures that the installation accuracy of the equipment is higher, the service life is longer, and it is more reliable. The horizontal seal sealer of the machine is elliptical in the up and down and horizontal directions, and the cutting structure is carried out at the same time. When the packaging film is heated and pressurized, it moves horizontally, so the heating time is long and the thermal efficiency is high. It is especially suitable for industries with thick packaging film and high sealing requirements.

3. The main machine of the equipment is composed of four sets of servo motor systems and color touch screens, and the feeder and feeder are composed of two sets of servo motor systems and     color touch screens, which make the machine achieve high control accuracy. Its intelligent control system makes all parameters of the machine easy to set and accurate to lock.

Main configuration of high speed pillow bag packing machine

Power configuration
1Cutter shaft servo motor+driveMDMF102L1G6M+MDDLN45NE1PanasonicJapan
2Film feeding shaft servo motor+driveMHMF082L1U2M+MCDLN35NE1PanasonicJapan
3Longitudinal sealing shaft servo motor+driveMHMF082L1U2M+MCDLN35NE1PanasonicJapan
4Feed shaft servo motor+driveMHMF082L1U2M+MCDLN35NE1PanasonicJapan
5Blanking shaft servo motor+driveMHMF042L1U2M+MBDLN25NE1PanasonicJapan

Electric configuration
1touch screenMT8102IE1WEINVIEWTaiwan
2PLCAFP-XH M8N30T1PanasonicJapan
3Circuit breakerOSMC32N1C6KG1SchneiderGermany
4Circuit breakerOSMC32N1C20KG2SchneiderGermany
5Circuit breakerSMC32N2C20+OSMVG2401SchneiderGermany
6Emergency stop buttonXB2BS542C1SchneiderGermany
7Switching Mode Power SupplyDR-60-242MEANWELLTaiwan,CN
9Solid-state relayRMA-40A-4004TOKYJapan
10Proximity switch normally openTL12-N4B7TOKYJapan
11Intermediate relayRJ2S-CL-D24+SJ2S-05B3IDECJapan
12Alarm lampST45L-BZ-3-24-RAG1BANNERUSA
13Color code sensorQS181BANNERUSA
14Optical fiber sensorBRF-N4OPTEXChina
15Optical fiberNF-DB014OPTEXChina

Air power configuration
1Air source processorAC20A-20-A1SMCJapan
2Solenoid valveSY7120-5DD-026SMCJapan
3Blanking cylinderCXSM16*5S2SMCJapan
4Cutter cylinderAND-32-20-1-P-A-C1FESTOGermany
5Gusset cylinderDFM-25-20-P-A-GF2FESTOGermany
